IdExchange 1.9.1

Resetting YubiKey Device

Overview

The YubiKey device can be reset to a factory state. This is useful of the organization desires to reuse the YubiKey.

Step Number

Procedure

Example

1

Log in to the IDMS

Go to PIV/Manage and retrieve the user that encoded the YubiKey,


2

Click the Credentials Tab

In the Credentials table, locate the user, click the Action button and select Terminate.

This process will revoke the credentials that are on the YubiKey



3

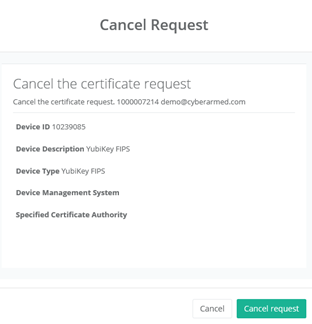

Next, press the cancel request button to remove any issuance requests for the YubiKey



4

Next, press the Delete device button to remove the YubiKey device association with the user.


5

Next click Reports, Devices, press Read Device



6

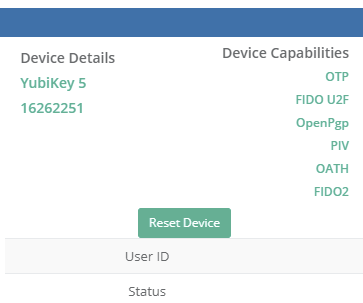

Next, press Reset Device to remove any card management keys from the IDMS.


7

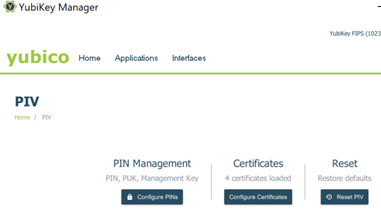

Finally, use the YubiKey utility to restore the device to factory settings.
