System Certificates
Communication protection

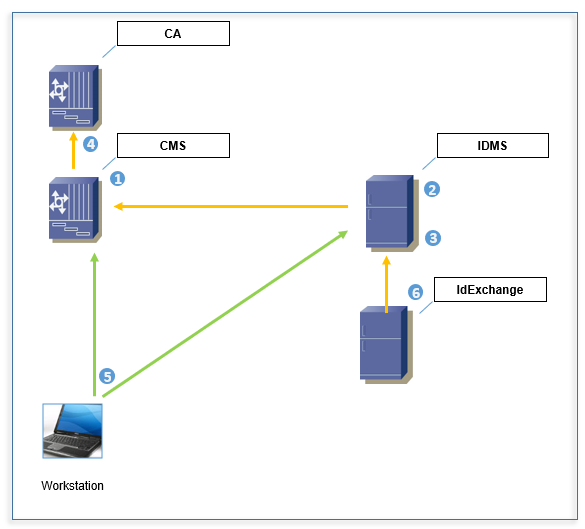

The IDMS web API, web page, and client platforms all enforce mutually authenticated, encrypted connections for all transactions.Each transaction is governed and protected by SSL/TLS rules using the strongest cipher suites. The table below lists the different certificates that are used, and the respective location for each certificate.
| ID | Certificate Type/System | Description | Location |
|---|---|---|---|
| 1 | SSL Certificate / Credential Management System | Used by the Web Server that is hosting the CMS. This certificate provides a means for the client to verify the CMS server. | IIS Web Server Store |
| 2 | SSL Certificate / IDMS | Used the by Web Server that is hosting the IDMS. This certificate provides a means for the client to verify the IDMS server. | IIS Web Server Store |
| 3 | Client certificate for IDMS to connect to CMS | Used by the IDMS to connect to the CMS API. This certificate enables the CMS to verify the IDMS. | Current User, Personal Store of the account the IDMS is configured to run as. |
| 4 | Enrollment Agent for CMS to connect to CA (Microsoft CA Only) | Used by the CMS | Current User, Personal Store of the account the CMS is configured to run as. |
| 5 | Client certificate for IdExchange connect to IDMS. | Used by the IdExchange microservice to communicate with the IDMS. | Local Computer, Personal Store of the server where the IdExchange Microservice is installed. |
| 6 | Client certificate for operators to connect to the IDMS and CMS systems. | Used by the CMS and IDMS systems to authenticate operators and administrators. | On the PIV credentials of the badge holders. |
