HID CMS Settings

Variable Name

Description / Values

DirectoryType

1=Entrust

2=Active Directory

ProvisionAction

2=Only push CPR. This setting is used if the directory CMS is connected to already has the user account.

4=Create user and push CPR (do not create request). This setting is used if the directory CMS is connected to does not have the user account and it needs to be created.

cmsDnPath

Directory search path used to locate and/or add the user.

1

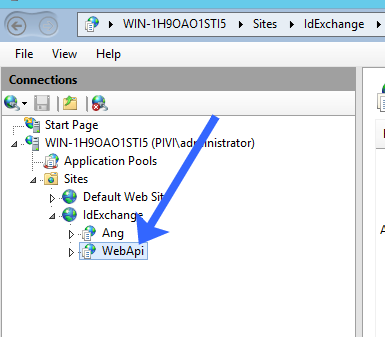

Open IIS Manager, in the sites window, click on IDMS/WebApi.

Sites> IdExchange > WebAPI

2

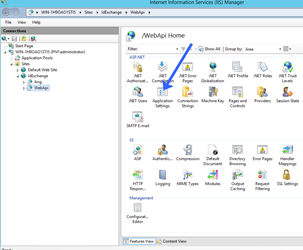

In the features view, double click on Application Settings.

3

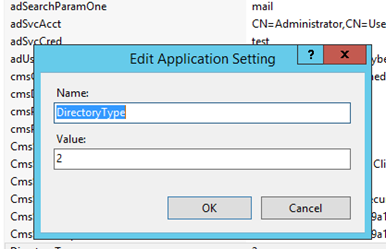

Double click on the DirectoryType field. If the CMS us using the RedHat directory, enter 1. If the CMS is using ActiveDirectory, press 2.

Press OK when complete.

4

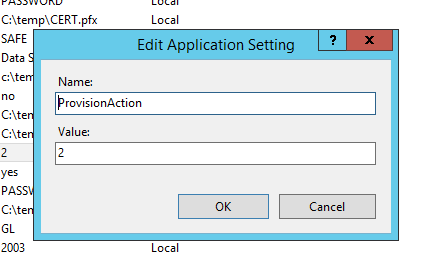

Double click on the ProvisionAction field. Enter the number 2 or 4 depending on the needs below:

• 2: If the CMS already has the user in the directory.

• 4: If the CMS does not have the user in the directory and it needs to be created.

Press OK when complete.

5

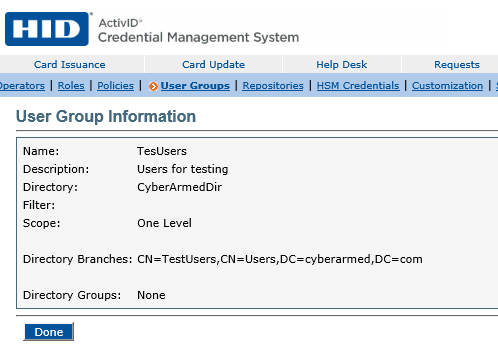

Go to the CMS and obtain the Directory Branch information for the user group that will be used in the credential encoding process.

As an example, the branch value is "CN=TestUsers,CN=Users,DC=cyberarmed,DC=com"

Select Done.

6

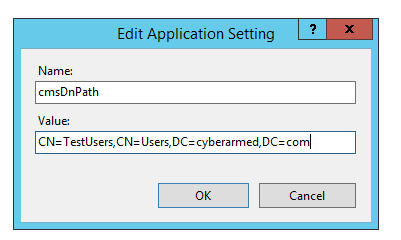

In the IIS Application Settings, double click the CmsDnPath setting. In the value, enter the value obtained from the step above.

This setting tells the IDMS which CMS branch to use to locate the user. Press OK and save the configuration.

7

Restart IIS to save the configurations.

1

Open IIS Manager, in the Sites window, click on IDMS/WebApi.

Sites> IdExchange > WebAPI

2

In the features view, double click on Application Settings.

3

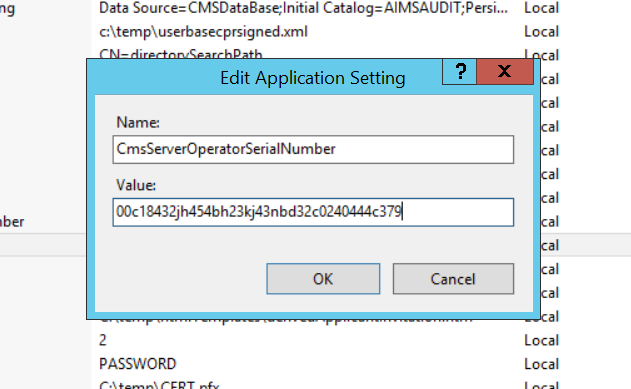

Double Click on CmsServerOperatorSerialNumber and insert the correct serial number of the certificate that will be used to connect the IDMS to CMS.

4

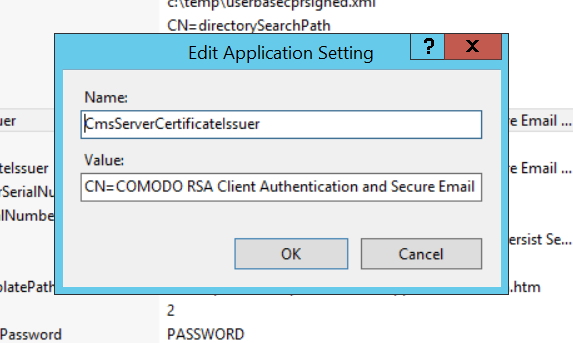

Next, double click on CmsServerCertificateIssuer and insert the certificates Issuer path.

1

On the CMS, Open the PIVEnrollment.properties from C:\ProgramData\HID Global\Credential Management System\Shared Files

2

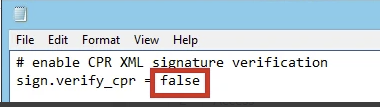

Make the change below:

# enable CPR XML signature verification
sign.verify_cpr = false

3

Restart CMS.
