Card Expiration Date Settings
By default, the IDMS specifies a 5 year max for a card expiration date. To configurate the years the card is valid, the Card Validity setting can be used.
Creating an expiration date past 5 years requires a CMS change. Perform the procedures in the CMS Configuration section to be able to set the expiration date past 5 years.
Prerequisites
Required Permissions: System Manager Role Definitions
Required Software: The IDMS must be connected the to the HID Credential Management System.
Additional CMS permissions required
Setting Card Expiration Settings
Item | Procedure | Example |
|---|---|---|
1 | Click Administration and select Credential Types. |  |
2 | Select a Credential Policy and press the corresponding gear button. Press Configure Policy. |  |
3 | Select the Device Issuance tab. |  |

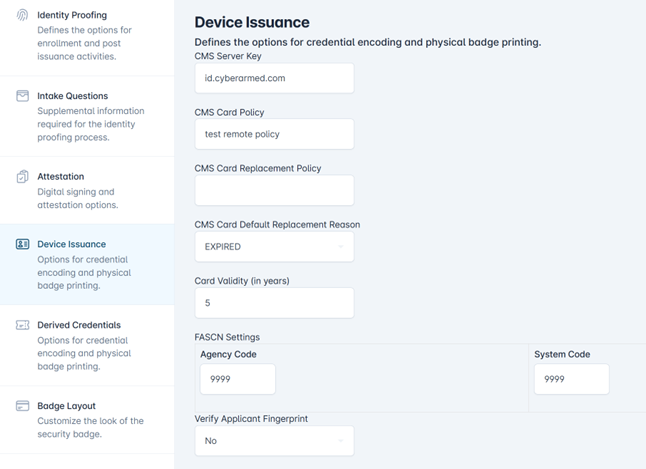

4 | Within the Device Issuance top sub-section, find the field labeled Card Validity. Use the up and down arrow to configure the proper card validity years for expiration. |  |
5 | Press the Save Changes button when complete. |
Reference: Configuring Device Issuance Policy
CMS Configuration
When setting a card expiration date past 5 years, the CMS system must be updated. The procedures are as follows:
Item | Procedure | Example |
|---|---|---|
1 | Go to the CMS server. | |
2 | Go to the folder c:\ProgramData\HID Global\Credential Management System\Shared Files | |
3 | Backup the PIVEnrollment.properties (in case it needs to be restored). | |
4 | Edit the PIVEnrollment.properties. | |
5 | Locate the ExpirationDate.store_enforcedFormat.maxDuration.value setting. | |
6 | Set the value to the desired years. For example, the configuration is set for a 6-year max expiration. |  |
7 | Save the PIVEnrollment.properties. | |
8 | Restart the CMS Service. |
