About the Identity Management System

The Identity Management System (IDMS) enables organizations to perform a wide range of identity proofing and multi-factor authentication (MFA) credentials issuance activities necessary to meet a wide spectrum of MFA needs. Built on the Personal Identity Verification (PIV) digital identity standards compatibility standards set forth by the National Institute of Standards and Technologies (NIST), IDMS enables organizations to implement security controls necessary to efficiently identify and credential their employees and other resources all in a way that is standard and interoperable. The IDMS provides the following features:

• Manage and track the user’s identity proofing lifecycle states

• Enforce separation of duties to ensure security in the credential production process

• Acquire identification attributes such as photo, fingerprints and identity documents

• Provide a single interface for management different identity repositories

• Provide an interface to the HID Card Management System to automate the provisioning of data and credential production

• Issue and management multiple credentials for a one user

• Provide automated certificate management and renewal alerts

Features

Existing IDMS Enterprise Integration

IDMS plugs into to existing identity management repositories to accelerate the issuance process. For example, IDMS can connect to active directory, existing databases and even external credential issuance platforms to retrieve existing identity data. This feature enables organizations to save time by using existing data.

Complete Turn-Key Package

The IDMS platform integrates all of the required identity proofing and credential issuance components into one, easy to install system.

Local and Remote Issuance Models

Depending on the needs of the organization, issuance can be conducted locally in a central facility or can be delegated to remote sites.

Onsite Credential Printing

Credentials can be printed onsite to accelerate issuance.

Data export

User data can securely be exported via application programming interface (API) or direct database extraction. The information is presented in the JSON format for interoperable processing on different computing platforms.

IDMS Components

IDMS is comprised of both workstation software and server software. The workstation software (known as the Personal Credential Assistant) is installed on a desktop or laptop and provides the software to capture fingerprints, print credentials and encode credentials. The server software is installed on a web server and provides the central location to track process the identity transactions and interface with external systems.

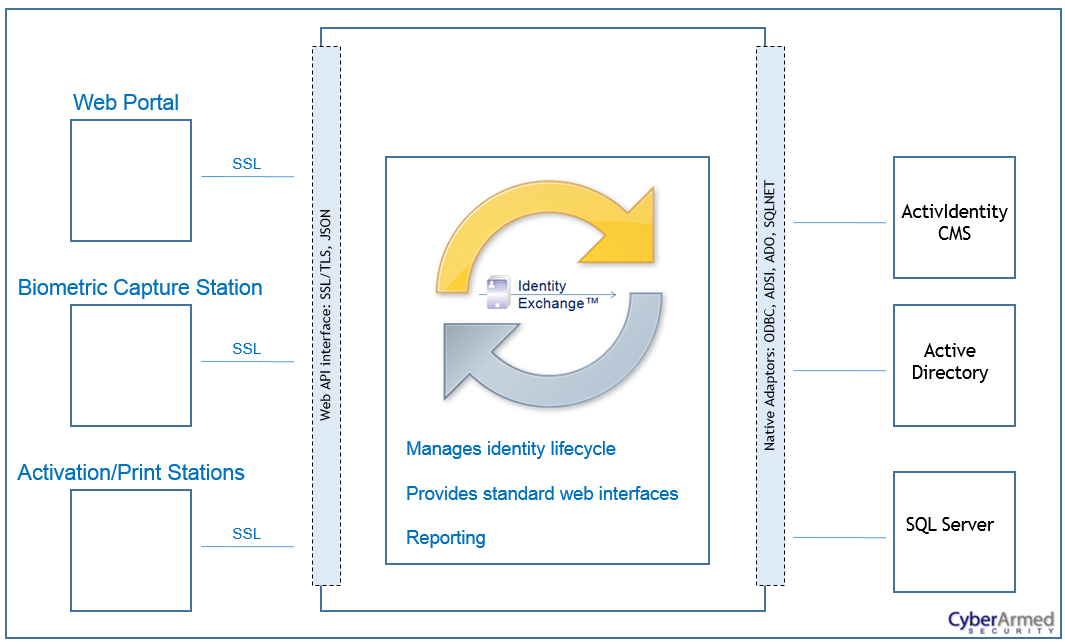

Identity Lifecycle Management System

The ILMS is responsible for managing and tracking the identity proofing and credentialing lifecycle for the user as then progress through the PIV credentialing phases. The ILMS serves a hub between the different systems enable the 1) secure retrieval and submission of biometric data from external systems, 2) credential printing and 3) credential activation. Finally, the ILMS an extensive REST based API set to enable authorized operators to request credentials, approve credential applications and monitor system activity.

Credential Management System

The credential management system (by HID Global™) is responsible for managing, securing and electronically encoding the physical smart cards. This system also serves as a hub as it interacts directly with the organization’s identity repositories, certificate authorities and card activation stations.

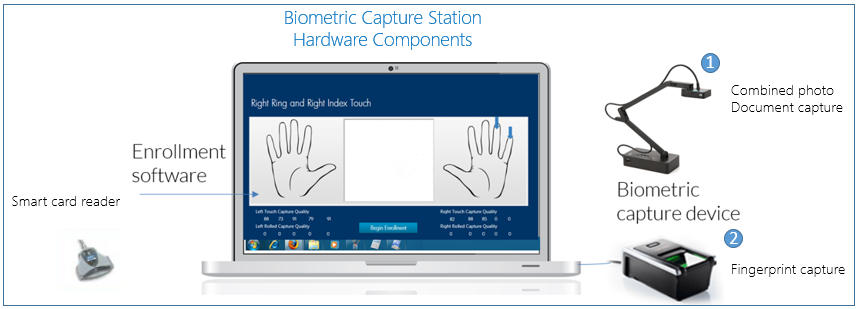

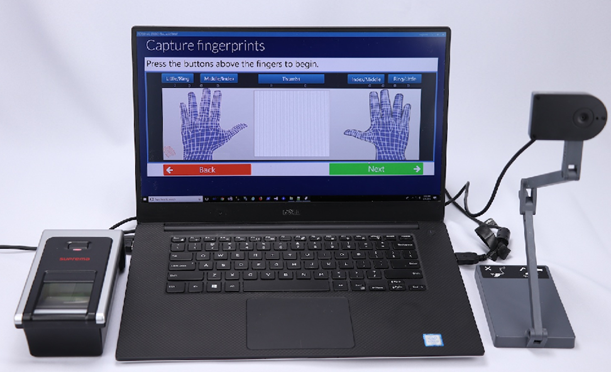

Biometric Capture Station

The biometric capture station (BCS) provides the hardware and software necessary to enroll the user’s biometric attributes and identity documentation. The BCS biometric acquisition system was carefully designed to be easy to use, flexible for different identity proofing and enrollment scenarios. BCS utilizes FBI/NIST approved components and provides numerous options for mobile, high speed and document and biometric acquisition to provide a wide array of options for different deployment scenarios.

 Biometric features

• Automatic scoring and segmentation in accordance with NIST Standards

• Sequence checking

• ANSI standard output for biometric standards 378, 381, 385

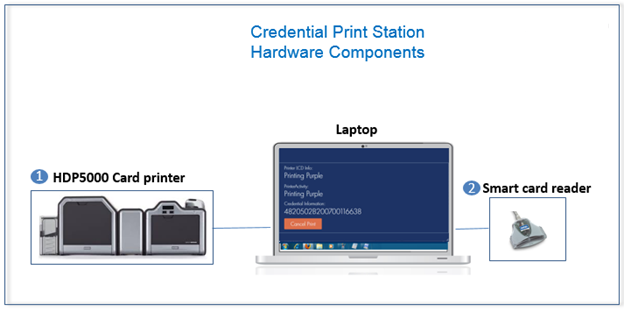

Credential Print Station

The credential print station physically prints the user’s identity attributes onto the smart card in accordance with PIV specifications. With this capability, on demand printing can be performed to ensure the user receives their credential in the fastest time possible. Additionally, the print station has built-in security and card inventory controls to ensure only authorized credentials can be printed by authorized printers.

Features

• Real-time card serial number read and validation to ensure only authorized cards can be printed

• Automatic error notification

• Consumable monitoring

• Printer registration to ensure only authorized printers can perform print jobs

• Batch mode capability to print large numbers of cards

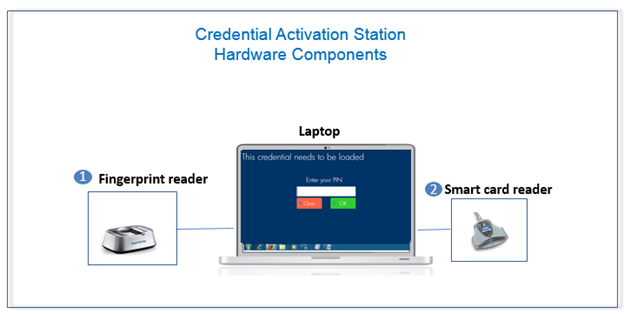

Credential Activation Station

The Personal Credential Assistant (PCA) is a PIV credential platform that enables organizations to simplify PIV credential issuance and management processes. With its intuitive screens, search automation and detailed logging capabilities, PCA provides a better way for users' to securely manage their credential in a manner that is convenient to them and meets organization security requirements. PCA can perform the entire spectrum of credential issuance and management activities including: activation, update, renewal and unlock from their own computer at a time of their choosing.

Credential Activation Station Features

• Customized branding and messaging: The PCA user interface (GUI) has been designed to be easy to use and provide maximum branding and messaging options for organizations. With PCA, organizations can place their logos, messages and even custom content into the application. These features provide the ability for organizations to maintain a consistent look for all of their identity proofing and credentialing applications.

• Automated search: PCA will automatically retrieve user and credential information based on the PIV credential number. This feature eliminates the need for lengthy searching.

• Streamlined biometric validation: In addition to supporting multiple GSA APL vendor biometric readers and algorithms, PCA is designed to reduce the incidents of false rejections. Specifically, PCA performs validation of the live capture template before the matching process begins. This validation reduces the times the user is required to provide their fingerprint during the activation process and enables PCA to securely match a high quality live capture image against the server and off the card with only one capture from the user in a manner that better manages the identity verification process while also decreasing the burden on the end user.

• Improved auditing: PCA produces much richer logs including; card personalization details, biometric matching information and total activation times to help diagnose errors and provide information to help continuously improve the activation infrastructure. Furthermore, PCA is able to uniquely identify the workstation it is operating from in order to help generate meaningful usage statistics. Using this workstation level information, more effective troubleshooting can be performed to expedite error recovery.

• Real-time marquees: During the credential encoding, PCA will display custom content that can be used to provide instant training for the end user.

Id Data Exchange (IDMS)

The ILMS data bridge will link the organization’s identity management system in order to accelerate the PIV credentialing process. For example, when connected, the ILMS can retrieve the person’s base biographic data to eliminate the need for manual data entry. The following interfaces are supported:

REST/SOAP

Active Directory

Service Interface Provider

MSSQL

Server software

The server software is installed on Microsoft IIS and serves as the central processing hub that interfaces with external systems and processes the identity management transactions.

Server software external system connections

The IDMS server software connects to three external systems in order to process identity transactions

Server software optional system connections

In addition to the base system interfaces described above, IDMS can be configured to interface with existing Human Resource Systems, Physical Access Control systems and background investigation systems.

Workstation software

The workstation software is installed on Windows 7, 8.1 or 10 and provides the means to control the hardware and software required to capture identity attributes, print credentials and encode credentials.

The workstation software modes of operation

Component	Description
	Provides a mechanism to collect a user's identity attributes such as photo, fingerprints and identity documents.
	Provides a mechanism to securely print a credential.
	Provides a secure self-service mechanism to activate and manage smart card PIV credentials.

How IDMS Works After Installation

Once the IDMS workstation and server components have been installed, organizations will utilize the two components to perform the requisite identity proofing and management transaction for required for credential issuance. The diagrams below provide a view of the completed installation and the transaction sequence of the system when in operation.

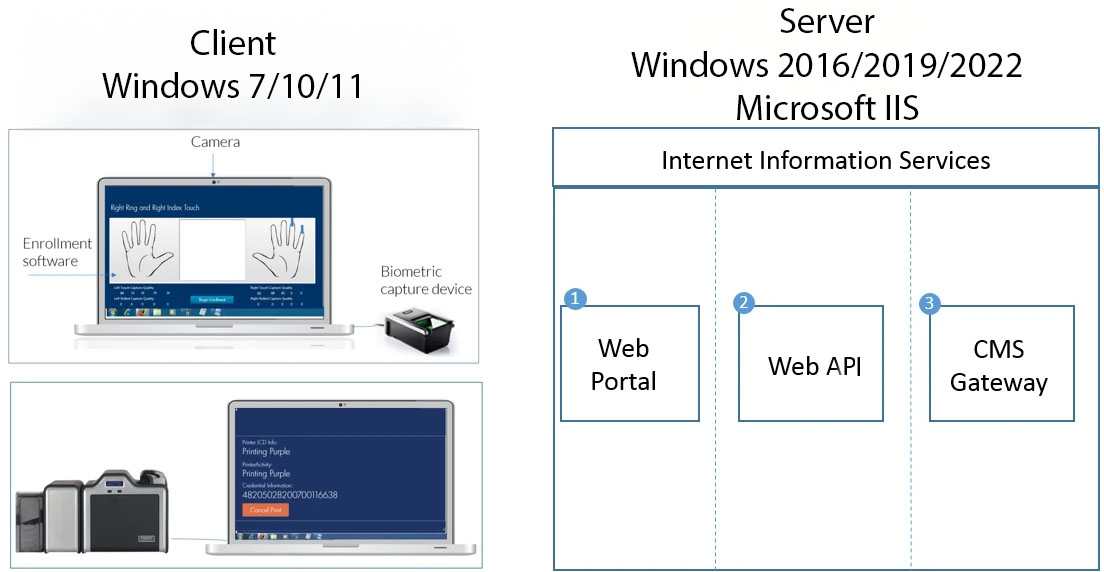

Installation view

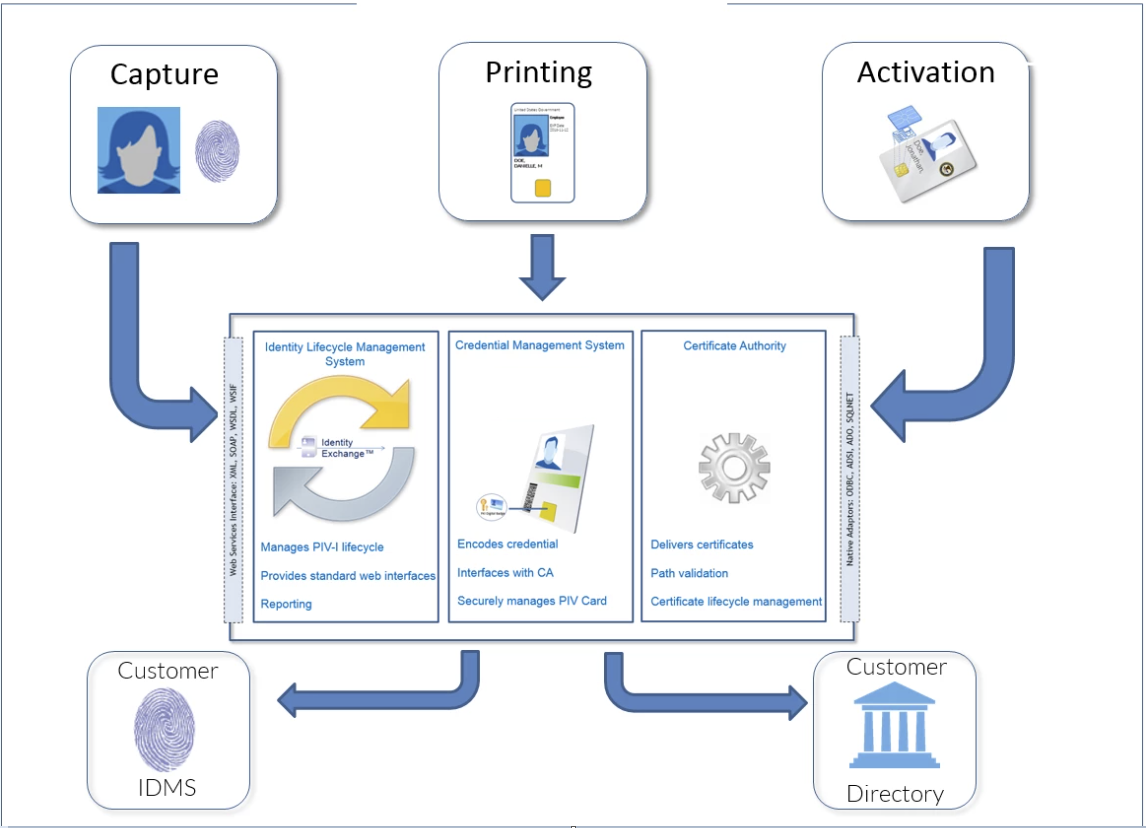

Transaction sequence
